Planetary gear 3500 lb rope ATV Electric Winch / Winches

large.img.alt
small.img.alt

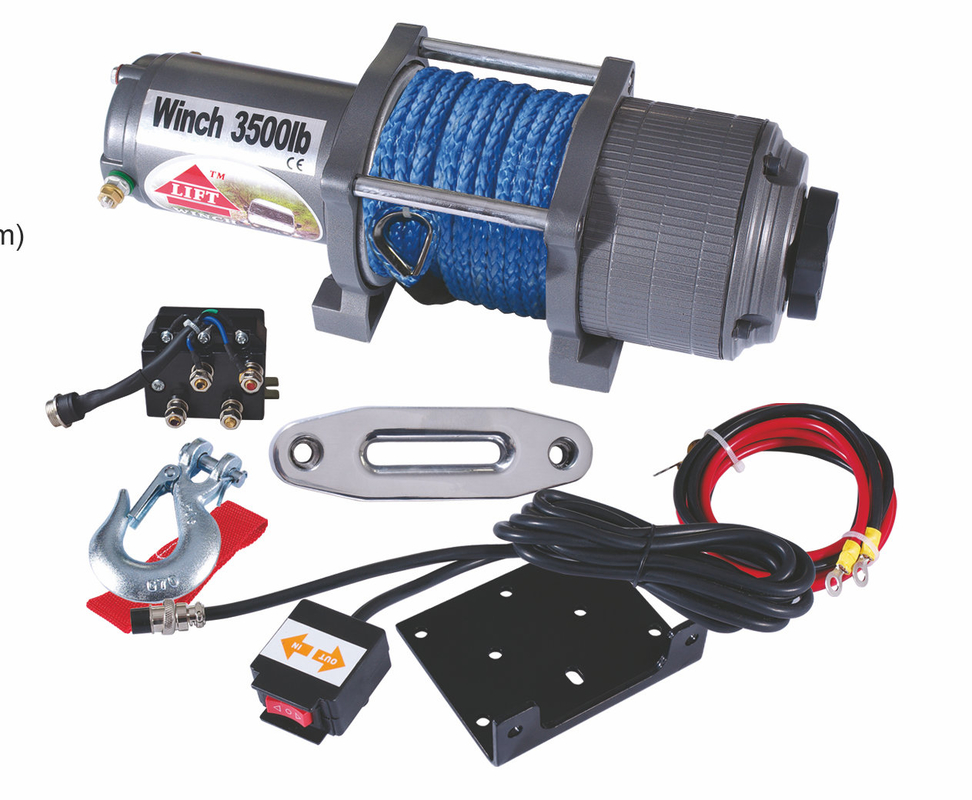

Large Image :  Planetary gear 3500 lb rope ATV Electric Winch / Winches Get Best Price

Product Details:
Place of Origin: China Mainland
Certification: CE, ISO9001:2008
Model Number: P3500-1W
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Packaging Details: 41.5X28X18cms,1pc/CTN
Delivery Time: 25 days
Payment Terms: T/T
Supply Ability: 17000PCS / Month
Contact Now
Detailed Product Description
High Light:

Portable utv winches

,

electrical DC winch

Planetary gear 3500 lb rope ATV Electric Winch / Winches

1) 3500lbs rope UTV winch

2) Free spooling clutch

3) Automatic braking action

4) Specially designed differential planetary gearing for heavy duty application



Specifications:



 Rated line pull

 3500 lbs (1588 kgs) single line

 Motor

 Permanent magnet, 0.8kw/1.1hp 12v

 Gear reduction ratio

 128:1

 Geartarain

 3-Stage Planetary

 Clutch(free spooling)

 cam activated

 Rope (Dia x L)

 Φ6mm*15mm)

 Drum size (Dia x L)

 Φ1.77"*3.19"(Φ45mm*81mm)

 Overall dimensions

 13.6"*4.6"*4.8"(345mm*118mm*121mm)

 Packing size

 41.5*30*28*18cm 1PC/CTN

 Weight

 N.W/G.W: 10kg/11kg

Line speed and Amp draw (first layer) 12V


Line Pull

lb

NO

500

1000

1500

2000

2500

3000

3500

kg

LOAD

227

454

680

907

1134

1361

1588

Line Speed

ft/min

23.7

23.1

20.6

16.7

13.4

10.7

8.5

6.79

m/min

6.7

5.85

5.3

4.3

3.45

2.75

2.2

1.75

Motor

Amps

26

35

70

98

107

129

138

169

Line pull and cable capacity


Layers of cable

1

2

3

4

5

Rated line
pull per layer

lb

3500

2817

2573

2363

1975

kg

1588

1278

1167

1072

896

Cumulative cable
capacity

ft

7.9

16.7

26.2

36.7

49.2

m

35

5.1

8

11.2

15


Notice:

1) Do not use winch as a hoist, do not use for transportaion of people.

2) Don't operate and spool under full load over one minute continuously.

3) While motor is overtheating, please stop for a while to cool down.



Tag:

Portable utv winches,

electrical DC winch,

electric trailer winch
