Permanent magnet 3000 lb ATV Electric Winch / Winches with 1.83m battery cable and 3m control lead
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Battery Cable: | 1.83m In Length | Control Lead: | 3m In Length |
|---|---|---|---|
| Product Liability Insurance: | Covered Worldwide | ||
| High Light: | electric trailer winch,Portable utv winches |
||

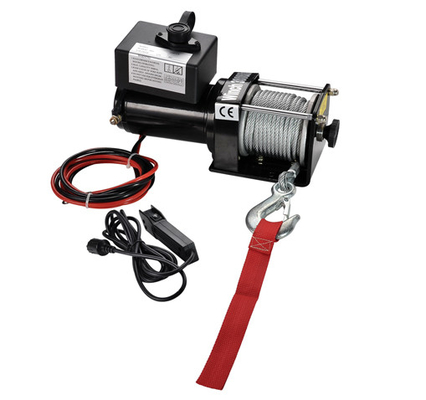

Permanent magnet 3000 lb ATV Electric Winch / Winches
ALL OF OUR WINCHES AND ACCESSORIES ARE PLI(PRODUCT LIABILITY INSURANCE)COVERED WORLDWIDE!
Over the past decade,we've devoted ourselves to the design, production and improvement of ATV winch, as well as products for UTV and other types of off-road vehicles. We have a strong research and development team. Depending on the innovation and improvement of the product, we're able to provide qualified products and services to customers all over the world.

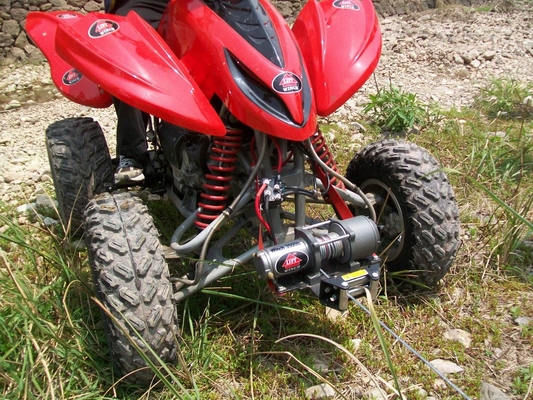

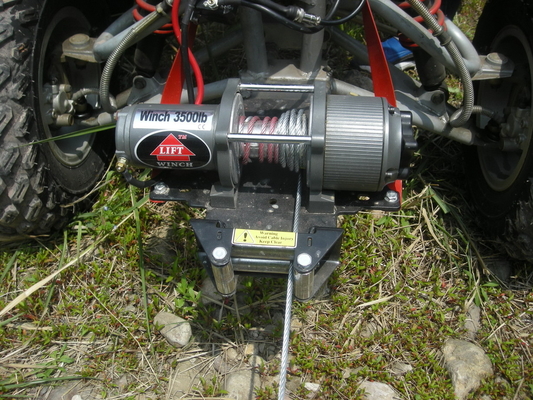

Here're some photos of our small trip to test one of our atv /utv winch models:
Specification:
|
Rated line pull |
3000 lbs (1361 kgs) single line |
|
Motor |
Permanent magnet, 1.0kw/1.34hp (12v ) |
|
Gear reduction ratio |
153:1 |
|
Cable (Dia x L) |
Φ5.2mm*10.2m |
|
Drum size (Dia x L) |
Φ1.24"*2.88"(Φ31.5mm*73mm) |
|
Overall dimensions(L X W X H) |
12"*4.1"*4.1"(305mm*105mm*105mm) |
|
Mounting bolt pattern |
3.13"(79.5mm) |
|
Packing size |
34*24*34cm 2PCS/CTN |
|
Weight |
N.W/G.W: 18kg/20kg |
Pull, Speed, Amperes, Volts(First layer)
|
Line pull |
Line Speed |
Current |
|
|
|
|
|
|
12V DC |
12V DC |
|
0 |
9.5(2.9) |
10 |
|
1000(454) |
6.6(2.0) |
25 |
|
2000(680) |
4.3(1.3) |
60 |
|
3000(1361) |
2.3(0.7) |
150 |
Line Pull And Rope Capacity In Layer
|
Layer |
Rated Line Pull |
Total Rope on Drum |
|
|
|
|
|
1 |
3000(1361) |
5.6(1.7) |
|
2 |
2370(1075) |
12.1(3.7) |
|
3 |
1960(889) |
19.7(6.0) |
|
4 |
1670(756) |
27.9(8.5) |
|
5 |
1460(662) |
37.1(11.3) |
|
6 |
1290(585) |
46.9(14.0) |
Notice:
1) Do not use winch as a hoist, do not use for transportaion of people.
2) Don't operate and spool under full load over one minute continuously.
3) While motor is overtheating, please stop for a while to cool down.
4) Limited warranty.
