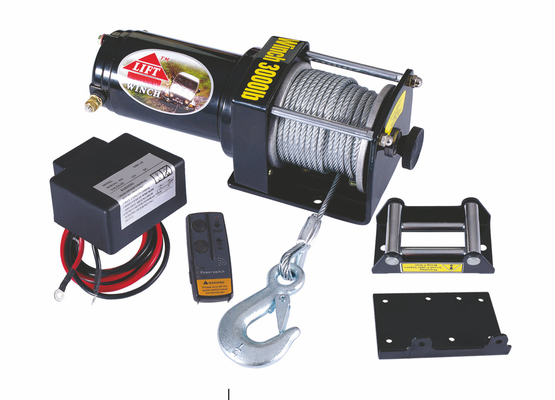

Remote control 12V DC 3000 lb ATV Electric Winch / Winches
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Capacity: | 3000lbs | Remote Control: | Yes |
|---|---|---|---|
| Winch Color: | Black | Wire Rope:: | 5.2mm(D) X 10.2m(L) |
| High Light: | Portable utv winches,electrical DC winch |
||
DEAR CUSTOMERS,
ALL OF OUR WINCHES AND ACCESSORIES ARE PLI(PRODUCT LIABILITY INSURANCE)COVERED WORLDWIDE!
Over the past decade,we have devoted ourselves to the design,production and improvement of the ATV winches, as well as products for UTV and other types of off-road vehicles.Our company has a strong R&D team, depending on the innovation and improvement of the products, we are able to provide qualified products and services to the customers all over the world.

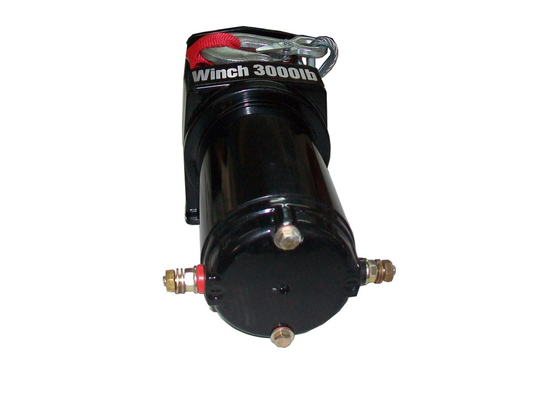

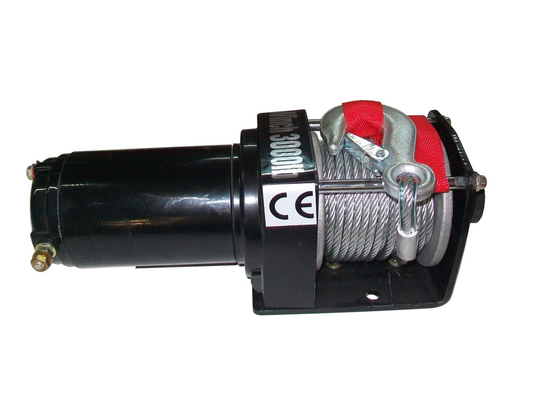

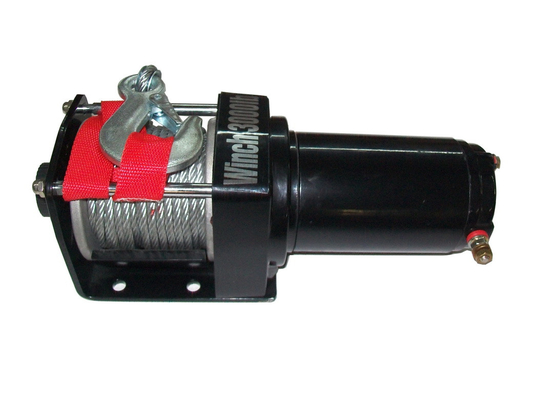

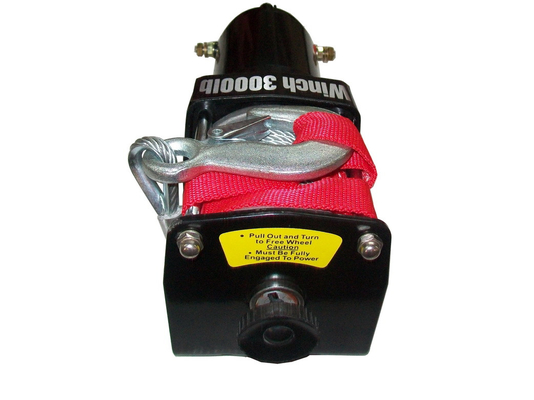

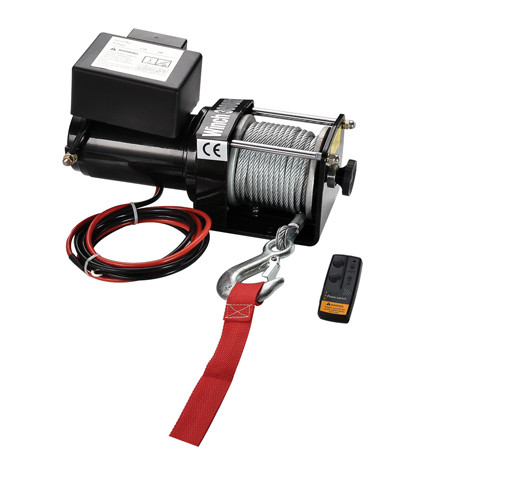

Remote control 12V DC 3000 lb ATV Electric Winch / Winches
- 3000lbs ATV winch
- With remote control
Specifications:
|
Rated line pull |
3000 lbs (1361 kgs) single line |
|
Motor |
Permanent magnet, 1.0kw/1.34hp (12v ) |
|
Gear reduction ratio |
153:1 |
|
Cable (Dia x L) |
Φ5.2mm*10.2m |
|
Drum size (Dia x L) |
Φ1.24"*2.88"(Φ31.5mm*73mm) |
|
Overall dimensions(L X W X H) |
12"*4.1"*4.1"(305mm*105mm*105mm) |
|
Mounting bolt pattern |
3.13"(79.5mm) |
|
Packing size |
34*24*34cm 2PCS/CTN |
|
Weight |
N.W/G.W: 18kg/20kg |
Pull, Speed, Amperes, Volts(First layer)
|
Line pull |
Line Speed |
Current |
|
|
|
|
|
|
12V DC |
12V DC |
|
0 |
9.5(2.9) |
10 |
|
1000(454) |
6.6(2.0) |
25 |
|
2000(680) |
4.3(1.3) |
60 |
|
3000(1361) |
2.3(0.7) |
150 |
Line Pull And Rope Capacity In Layer
|
Layer |
Rated Line Pull |
Total Rope on Drum |
|
|
|
|
|
1 |
3000(1361) |
5.6(1.7) |
|
2 |
2370(1075) |
12.1(3.7) |
|
3 |
1960(889) |
19.7(6.0) |
|
4 |
1670(756) |
27.9(8.5) |
|
5 |
1460(662) |
37.1(11.3) |
|
6 |
1290(585) |
46.9(14.0) |
Notice:
1) Do not use winch as a hoist, do not use for transportaion of people.
2) Don't operate and spool under full load over one minute continuously.
3) While motor is overtheating, please stop for a while to cool down.
This is our packing line:
