Product Details:
Payment & Shipping Terms:
|
Insurance: | Product Liability Insurance Covered | Wireless Remote: | Yes |
---|---|---|---|
Hook Size: | 1/2-inch | Wire Rope: | 11mm X 28m |

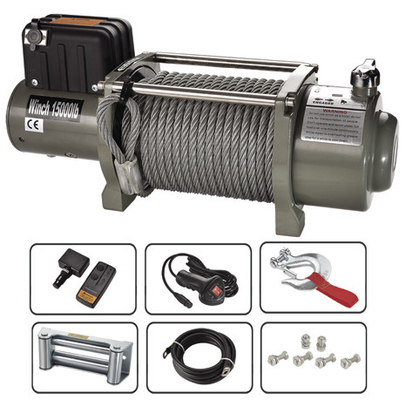

15000 lb Truck Electric Winch with remote control and key way cam clutch SEC15000T
we print your logo when order quantity exceeds 100PCS.
All winches and accessories are Product LIabiality Insurance covered worldwide.
Features:
HOT SELLER IN EUROPE, AMERICA, AND OCEANIA
Specifications:
Rated line pull | 15000LBS(6804kgs) single line |
Motor | 5.6hp/4.2kw 12V, 6.17hp/4.6kw 24V, Series Wound |
Control | Remote switch, 12ft(3.7m)lead |
Gear train | 3 Stage Planetary |
Gear reduction ratio | 312.4:1 |
Clutch | keycam |
Braking Action | Automatic In-The-Drum |
Drum Size | Φ85mmxL221.5mm(3.35"x8.72") |
Cable | Φ11.0mmx28m(0.433"x91.86") |
Fairlead | 4-Way Roller Fairlead |
Remote Control | Included |
Battery | Recommended:650CCA minimum for winching |
Battery Leads | 2 gauge, 72"(183mm) |
Finish | Dark gray powder coat |
Overall Dimension | 21.5"x7.09"x9.73 (547mmx180mmx247mm) |
Mounting Bolt Pattern | 254mmx114.3mm(10"x4.5") |
Weight | N.W. 53KG; G.W. 55Kg |
Packing size | 60x23x38.5cm 1PC/CTN |
