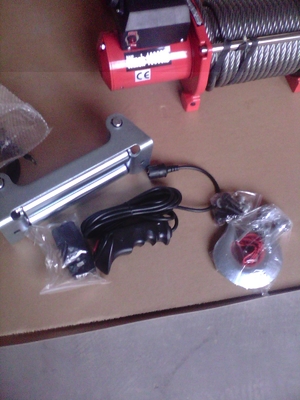

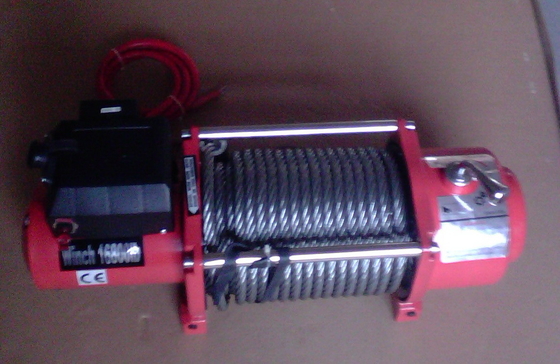

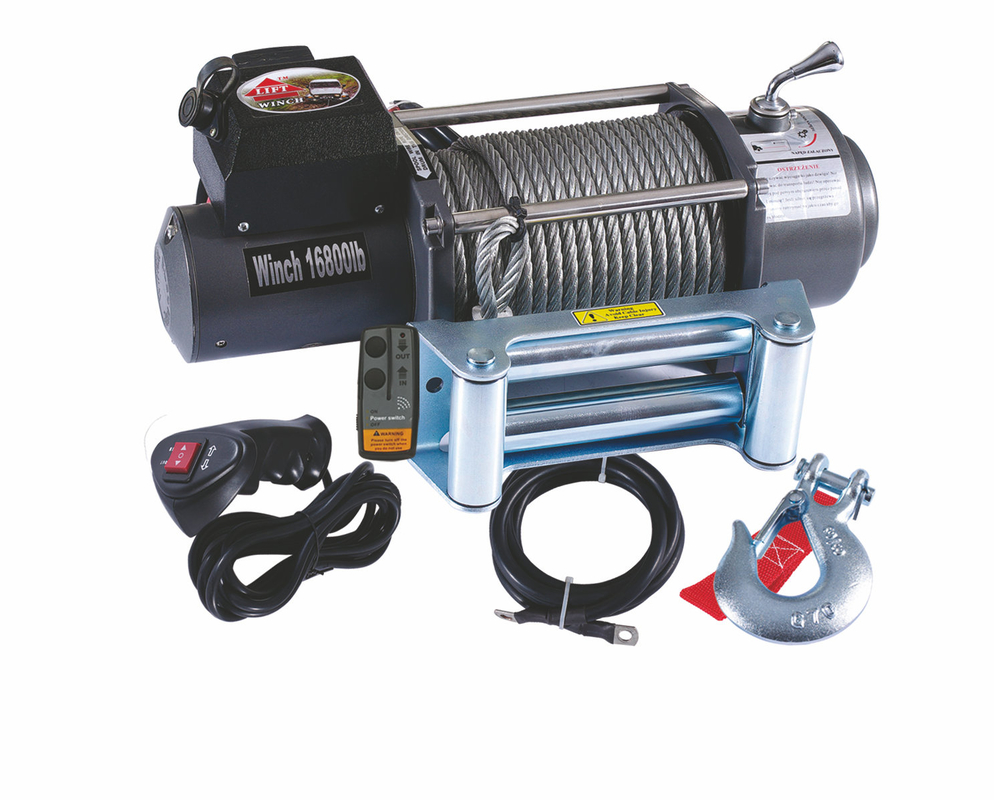

Water proof 16800 lb power motor Truck Electric Winch (12V / 24V)

Large Image : Water proof 16800 lb power motor Truck Electric Winch (12V / 24V) Get Best Price

Product Details:

Place of Origin:	China Mainland
Certification:	CE, ISO9001:2008
Model Number:	SEC16800

Payment & Shipping Terms:

Minimum Order Quantity:	25 Unit/Units
Packaging Details:	Thick Carton
Delivery Time:	20 days
Payment Terms:	T/T
Supply Ability:	9000 Unit/Units per Month

Contact Now

Detailed Product Description

High Light:

electric winch 12v

industrial electric winch

Water proof 16800 lb power motor Truck Electric Winch (12V / 24V)

1.water-proof motor& gearbox &control box,
2.strong steel gear,
3.remote switch & wireless remote control

Truck Winch 16800lb power winch(12V or 24V)

SPECIFICATION :

Rated line pull:16800LBS(7620kg) single line
Motor: 5.6hp/4.2kw (12V), 6.17hp/4.6kw (24V), Series Wound
nControl: Remote switch, 12ft(3.7m)lead
Gear train: 3 Stage Planetary Gear reduction ratio: 312.4:1
Clutch: flexible operation, water-resistant
Braking Action: Automatic In-The-Drum
Drum Size: Φ85mmxL221.5mm(3.35"x8.72")
Cable: Φ11.5mm, 26m
Fairlead: 4-Way Roller Fairlead
Remote Control: Included
Battery: Recommended:650CCA minimum for winching
Battery Leads: 2 gauge, 72"(183mm)
16800lb Features and Specifications:
Finish: Dark gray powder coat
Overall Dimensions: 21.5 x 7.09 x 9.73 (547mm x 180mm x 247mm)
Mounting Bolt Pattern: 254mm x 114.3mm (10 x 4.5")

16800lb Line Speed and Amp Draw 12V

Line Pull	lb	No	2000	4000	6000	8000	10000	12000	16800
	kg	Load	907	1814	2721	4300	4536	5443	7620
Line Speed	ft/min	16.5	12.27	9.38	7.41	6.43	5.18	4.46	2.95
	m/min	5	3.74	2.86	2.26	1.95	1.58	1.36	0.9

16800lb Line Pull and Cable Capacity

Layers of cable		1	2	3	4
Rated Line Pull per layer	lb	16800	13779	11202	9358
Rated Line Pull per layer	kg	7620	6250	5081	4245
cumulative cable capacity	ft	16.64	37.78	63.4	91.86
	m	5.1	11.5	19.3	28
