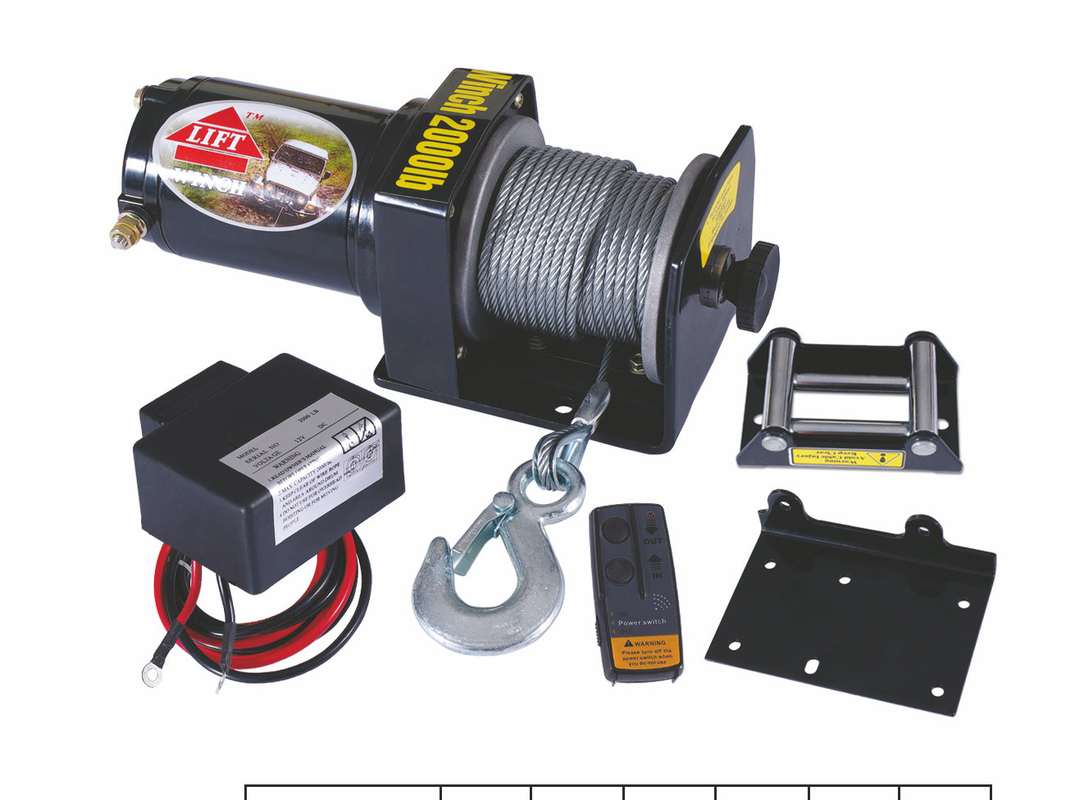

Roller fairlead Electric handy 2000 lb UTV Winch / Winches

Large Image : Roller fairlead Electric handy 2000 lb UTV Winch / Winches Get Best Price

Product Details:

Place of Origin:	China Mainland
Certification:	CE, ISO9001:2008
Model Number:	P2000-1C

Payment & Shipping Terms:

Minimum Order Quantity:	100PCS
Packaging Details:	34X24X34cms, 2pcs/CTN
Delivery Time:	25 days
Payment Terms:	T/T
Supply Ability:	20000PCS / Month

Contact Now

Detailed Product Description

High Light:

electric trailer winches

electrical DC winch

Roller fairlead Electric handy 2000 lb UTV Winch / Winches

2000lbs ATV winch
Easy to operate
handy
A mounting plate
4-way roller fairlead optional

Specification:

Rated line pull	2000 lbs (907 kgs) single line
Motor	Permanent magnet, 0.7kw/0.9hp 12v;0.8kw/1.0hp(24v)
Gear reduction ratio	153:1
Cable (Dia x L)	Φ5/32"49'(Φ4mm15m)
Drum size (Dia x L)	Φ1.24"2.88"(Φ31.5mm73mm)
Overall dimensions(L X W X H)	11.2"4.1"4.1"(285mm105mm105mm)
Mounting bolt pattern	3.13"(79.5mm)
Packing size	342434cm 2PCS/CTN
Weight	N.W/G.W: 16kg/17kg

Line pull and Rope capacity In Layer

Line pull lbs(kgs)	Line Speed ft/min(m/min)	Current A
	12V DC 24V DC	12V DC 24V DC
0	10.5(3.2) 11.8(3.6)	12 6
500(227)	9.2(2.8) 10.2(3.1)	25 10
1000(454)	7.5(2.3) 8.5(2.6)	40 15
1500(680)	5.9(1.8) 6.9(2.1)	60 25
2000(907)	3.3(1.0) 3.6(1.1)	90 55

Line pull and Rope capacity In Layer

Layer	Rated Line Pull lbs(kgs)	Total Rope on Drum ft(mm)

1	2000(907)	6.5(2.0)
2	1630(739)	14.0(4.3)
3	1380(626)	22.0(6.8)
4	1190(540)	31.0(9.5)
5	1050(476)	41.0(12.5)
6	940(426)	49.0(15.0)

About us:

We are a professional winch manufacturer in Ningbo, China.
Specializing in off-road electric winches, atv winches, boat winches, hand winches and off-road accessories.
Our company is ISO9001 quality management system certificated, and passed tests from SGS and Intertek. We have CE approval for all winches and have exported to many countries in Europe, and America, Oceania, etc.
Now we are the exclusive winch supplier for Canadian Tire Corporation.
Also we supply winches to Cequent Consumer Products and Smittybilt in USA, Prime Tech in Germany, ALDI and Supercheap Auto in Australia.
With decades of winch experience, we have applied 11 winch patents for advanced winch technology.
