Electric Portable 3500 lb Automatic brake line pull UTV Winch / Winches

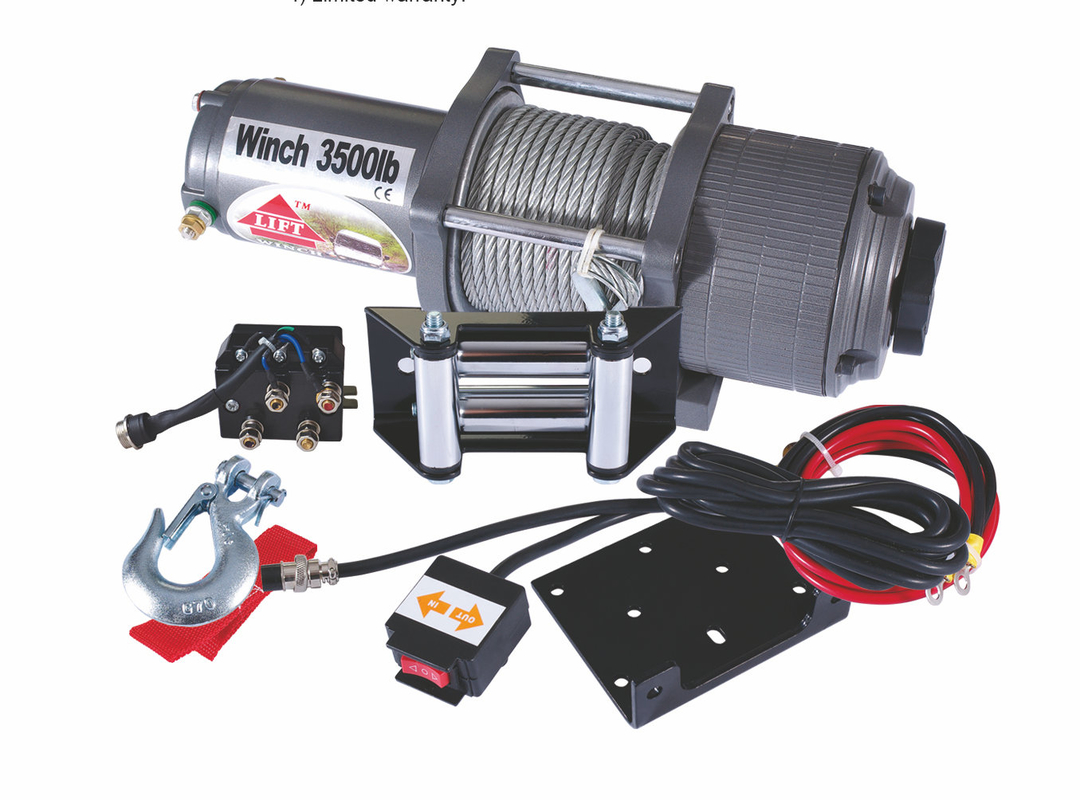

Large Image : Electric Portable 3500 lb Automatic brake line pull UTV Winch / Winches Get Best Price

Product Details:

Place of Origin:	China Mainland
Certification:	CE, ISO9001:2008
Model Number:	P3500-1D

Payment & Shipping Terms:

Minimum Order Quantity:	100PCS
Packaging Details:	41.5X28X18cms, 1pc/CTN
Delivery Time:	25 days
Payment Terms:	T/T
Supply Ability:	16000PCS / Month

Contact Now

Detailed Product Description

High Light:

electric trailer winches

electrical DC winch

Electric Portable 3500 lb Automatic brake line pull UTV Winch / Winches

Competitive Advantage:

1) Free spooling clutch.

2) Automatic braking action.

3) Specially designed differential planetary gearing for heavy duty application

Specification:
Rated line pull	3500 lbs (1588 kgs) single line
Motor	Permanent magnet, 0.8kw/1.1hp 12v
Gear reduction ratio	128:1
Geartarain	3-Stage Planetary
Clutch(free spooling)	cam activated
Cable (Dia x L)	Φ3/16"50'(Φ5.4mm15mm)
Drum size (Dia x L)	Φ1.77"3.19"(Φ45mm81mm)
Overall dimensions	13.6"4.6"4.8"(345mm118mm121mm)
Packing size	41.53028*18cm 1PC/CTN
Weight	N.W/G.W: 12kg/13kg

Line speed and Amp draw (first layer) 12V

Line Pull	lb	NO	500	1000	1500	2000	2500	3000	3500
Line Pull	kg	LOAD	227	454	680	907	1134	1361	1588
Line Speed	ft/min	23.7	23.1	20.6	16.7	13.4	10.7	8.5	6.79
Line Speed	m/min	6.7	5.85	5.3	4.3	3.45	2.75	2.2	1.75
Motor	Amps	26	35	70	98	107	129	138	169

Line pull and cable capacity

Layers of cable		1	2	3	4	5
Rated line pull per layer	lb	3500	2817	2573	2363	1975
Rated line pull per layer	kg	1588	1278	1167	1072	896
Cumulative cable capacity	ft	7.9	16.7	26.2	36.7	49.2
Cumulative cable capacity	m	35	5.1	8	11.2	15

Notice:

Do not use the winch as a hoist
Do not operate and spool under full load over one minute continuously, when motor is overheating
please stop for a while to cool down to ensure a longer life of the winch.
