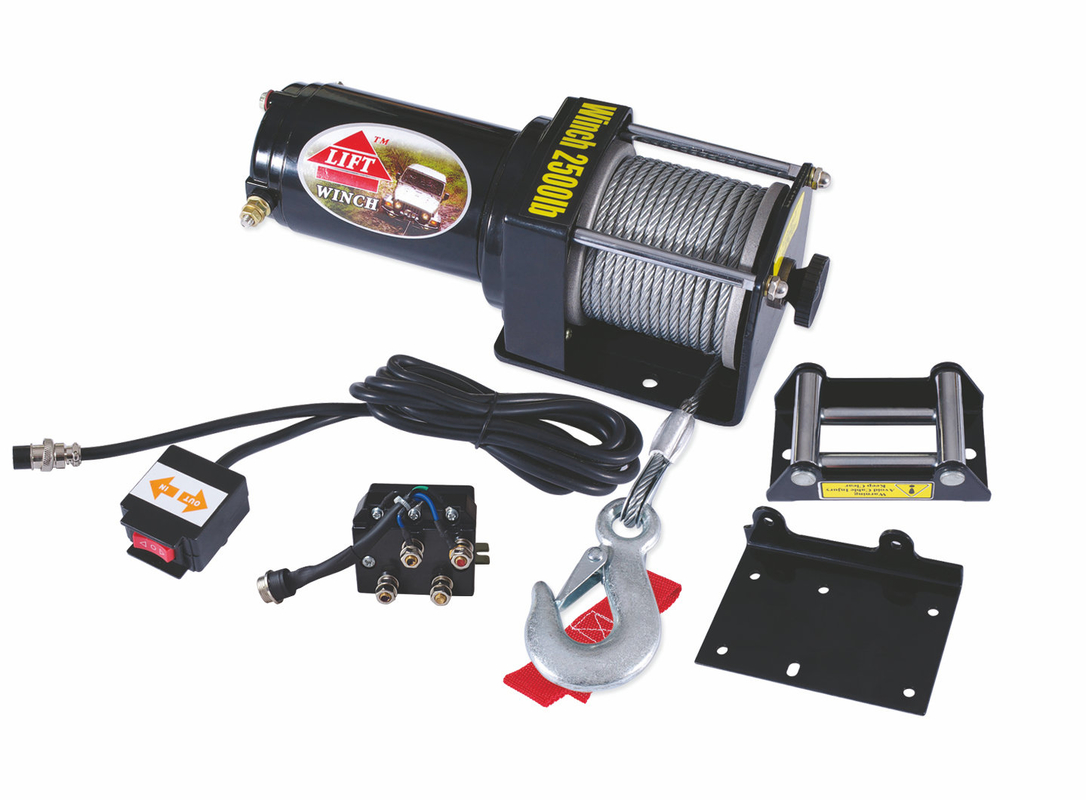

Roller fairlead 2500 lb ATV Electric Winch / Winches With switch control

large.img.alt
small.img.alt

Large Image :  Roller fairlead 2500 lb ATV Electric Winch / Winches With switch control Get Best Price

Product Details:
Place of Origin: China Mainland
Certification: CE, ISO9001:2008
Model Number: P2500-1D
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Packaging Details: 34X24X34cms, 2pcs/CTN
Delivery Time: 25 days
Payment Terms: T/T
Supply Ability: 16000PCS / Month
Contact Now
Detailed Product Description
High Light:

electric trailer winch

,

electrical DC winch

Roller fairlead 2500 lb ATV Electric Winch / Winches With switch control

  • 2500lbs winch will be a great item to add fun into your ATV adventure
  • With switch control
  • with mounting plate
  • with roller fairlead

Specification:


 Rated line pull

 2500 lbs (1133 kgs) single line

 Motor

 Permanent magnet, 0.8kw/1.1hp (12v )

 Gear reduction ratio

 153:1

 Cable (Dia x L)

 Φ3/16"*45'(Φ4.76mm*14m)

 Drum size (Dia x L)

 Φ1.24"*2.88"(Φ31.5mm*73mm)

 Overall dimensions(L X W X H)

 11.4"*4.1"*4.1"(290mm*105mm*105mm)

 Mounting bolt pattern

 3.13"(79.5mm)

 Packing size

 34*24*34cm 2PCS/CTN

 Weight

 N.W/G.W: 18kg/20kg

Line speed and Motor current(first layer)


Line pull

lbs

0

500

1000

1500

2000

2500

kgs

0

227

454

680

907

1133

Line Speed

FPM

14

12

10

8

7

5

MPM

4.2

3.6

3.0

2.4

2.1

1.5

Motor current

Amps

20

30

55

75

100

120

Line pull and Cable capacity


Layer of cable

1

2

3

4

5

6

Rated line
pull
per layer

lbs

2500

2000

1630

1380

1190

1050

kgs

1, 133

906

740

620

540

470

Cable
capacity
per layer

ft.

4

6.5

14

22

31

41

m

1.2

2.0

4.3

6.8

9.5

12.5



Notice:

1) Do not use winch as a hoist, do not use for transportaion of people.

2) Don't operate and spool under full load over one minute continuously.

3) While motor is overtheating, please stop for a while to cool down.

4) Limited warranty.
