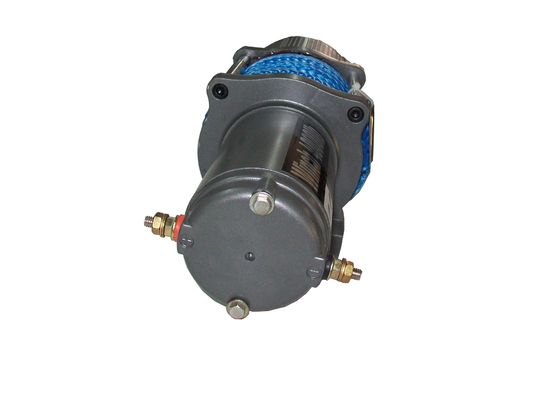

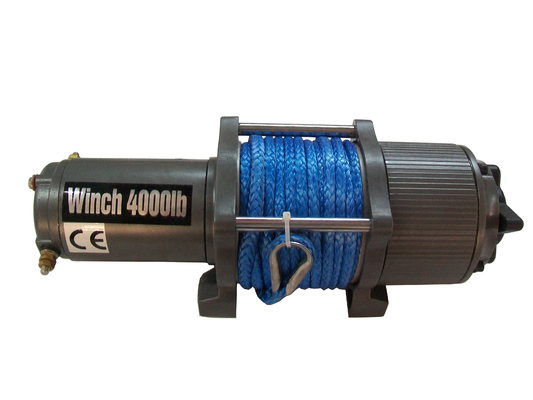

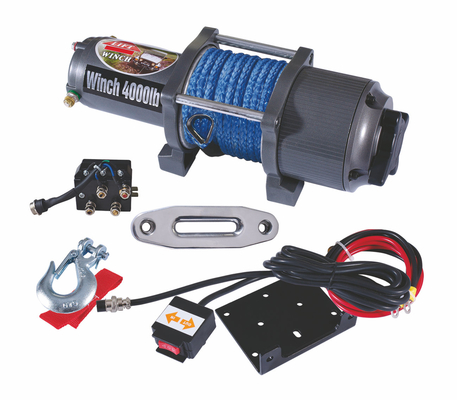

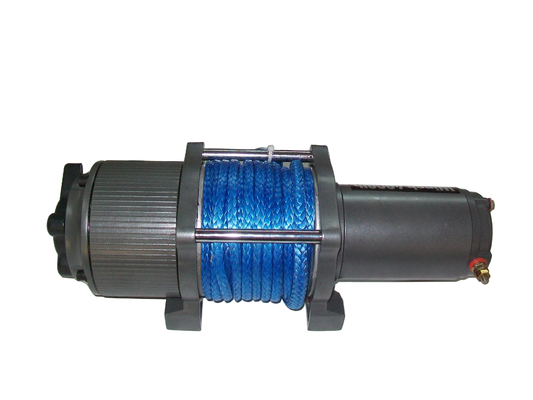

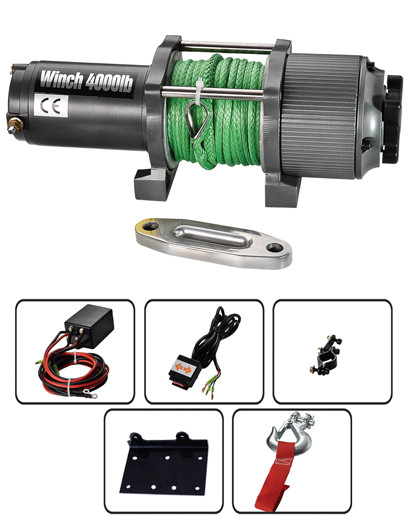

4000 lb 12V Free spooling clutch Rope Electric UTV Winch / Winches

Large Image : 4000 lb 12V Free spooling clutch Rope Electric UTV Winch / Winches Get Best Price

Product Details:

Place of Origin:	China Mainland
Brand Name:	Huge Lift
Certification:	CE, ISO9001:2008
Model Number:	P4000-1W

Payment & Shipping Terms:

Minimum Order Quantity:	100PCS
Packaging Details:	41.5X28X18cms,1pc/CTN
Delivery Time:	25 days
Payment Terms:	T/T, L/C, Western Union,Paypal
Supply Ability:	16000PCS / Month

Contact Now

Detailed Product Description

Insurance:

Product Liability Insurance Covered Worldwide

High Light:

electric trailer winches

electrical DC winch

4000 lb 12V Free spooling clutch Rope Electric UTV Winch / Winches

1) Free spooling clutch.

2) Automatic braking action

3) Specially designed differential planetary gearing for heavy duty application

Specifications:

Rated line pull	4000LB (1814kg)single line
Motor	Permanent magnet, 0.9kw/1.24hp(12V)
Gear reduction ratio	128.2:1
Geartarain	3-stage planetary
Rope (Dia*L)	Φ6.5mm*13.5m
Drum size (Dia*L)	Φ1.3.9"4.6"4.92"(353mm117mm125mm)
Packing size	41.52818cm 1PC/CTN
Weight	N.W/G.W: 11kg/12kg

LINE SPEED AND AMP DRAW (FIRSRT LAYER) 12V

Line Pull	lb	NO	500	1000	1500	2000	2500	3000	4000
Line Pull	kg	LOAD	227	454	680	907	1133	1361	1814
Line Speed	ft/min	23.7	23.1	20.6	16.7	13.4	10.7	8.5	6.79
Line Speed	m/min	6.7	5.95	5.3	4.3	3.45	2.75	2.2	1.75
Motor	Amps	26	35	70	98	107	129	138	205

Line pull and cable capacity

Layers of cable		1	2	3	4	5
Rated line pull per layer	Lb Kg	4000	2817	2573	2363	1975
Rated line pull per layer	Lb Kg	1814	1278	1167	1072	896

Notice:

Do not use the winch as a hoist
Do not operate and spool under full load over one minute continuously
When motor is overheating, please stop for a while to cool down to ensure a longer life of the winch
