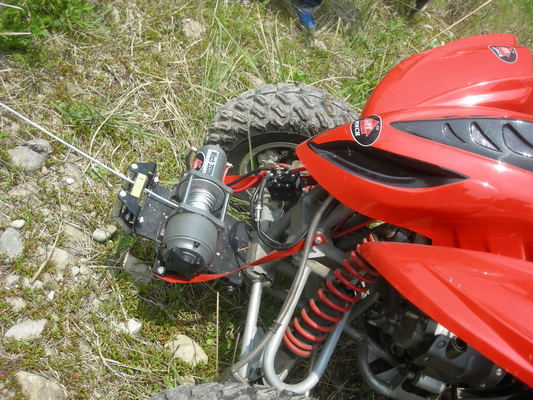

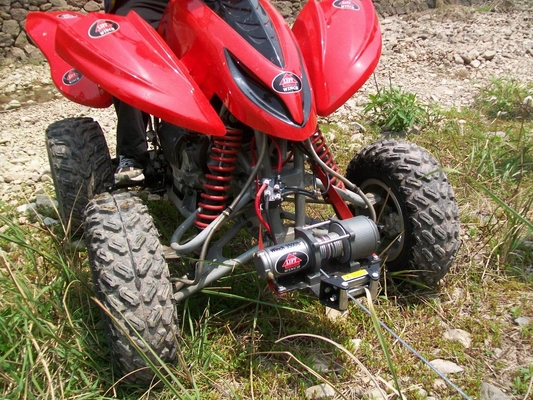

Rocker Switch Control 3000 lb ATV Electric Winch / Winches 12V with 4-way Roller Fairlead
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Approval: | CE | Product Liability Insurance: | Covered Worldwide |
|---|---|---|---|
| Gears: | Steel | Wireless Remote: | Optional |
Rocker Switch control 3000 lb ATV Electric Winch / Winches 12V with 4-way roller fairlead/optional wireless remote
1. 12V DC
2. Remote control optional
3. Single line 3000lbs ATV winch
4. 4-way roller fairlead included
5. mounting plate provided
6. PLI covered worldwide
7. CE approved
8. exported and recognized worldwide
Specifications:
|
Rated line pull |
3000 lbs (1361 kgs) single line |
|
Motor |
Permanent magnet, 1.0kw/1.34hp (12v ) |
|
Gear reduction ratio |
153:1 |
|
Cable (Dia x L) |
Φ5.2mm*10.2m |
|
Drum size (Dia x L) |
Φ1.24"*2.88"(Φ31.5mm*73mm) |
|
Overall dimensions(L X W X H) |
12"*4.1"*4.1"(305mm*105mm*105mm) |
|
Mounting bolt pattern |
3.13"(79.5mm) |
|
Packing size |
34*24*34cm 2PCS/CTN |
|
Weight |
N.W/G.W: 18kg/20kg |
Pull, Speed, Amperes, Volts(First layer)
|
Line pull |
Line Speed |
Current |
|
|
|
|
|
|
12V DC |
12V DC |
|
0 |
9.5(2.9) |
10 |
|
1000(454) |
6.6(2.0) |
25 |
|
2000(680) |
4.3(1.3) |
60 |
|
3000(1361) |
2.3(0.7) |
150 |
Line Pull And Rope Capacity In Layer
|
Layer |
Rated Line Pull |
Total Rope on Drum |
|
|
|
|
|
1 |
3000(1361) |
5.6(1.7) |
|
2 |
2370(1075) |
12.1(3.7) |
|
3 |
1960(889) |
19.7(6.0) |
|
4 |
1670(756) |
27.9(8.5) |
|
5 |
1460(662) |
37.1(11.3) |
|
6 |
1290(585) |
46.9(14.0) |
Notice :
1) Do not use winch as a hoist, do not use for transportaion of people.
2) Don't operate and spool under full load over one minute continuously.
3) While motor is overtheating, please stop for a while to cool down.

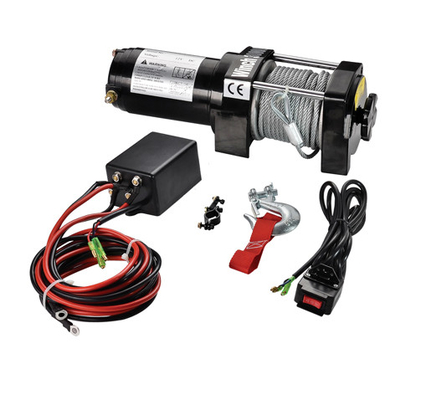

* Control box: you can either order the control box or request no plastic control box covering the solenoid.Wish you a pleasant journey with your beloved ATVs!
