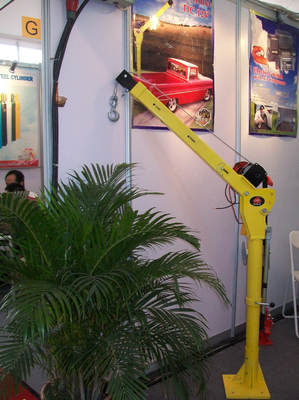

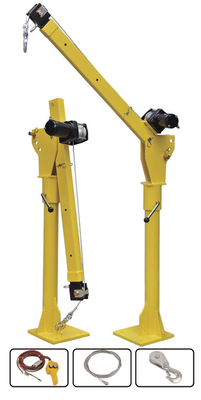

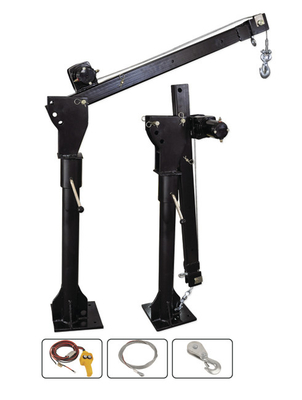

Foldable yellow/black/red crane single line lifting capacity 500KG/double line lifting capacity 800kg

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Foldable yellow/black/red crane single line lifting capacity 500KG/double line lifting capacity 800kg Get Best Price

Product Details:
Place of Origin: China Mainland
Brand Name: Huge Lift
Certification: CE, ISO9001:2008
Model Number: HP1000
Payment & Shipping Terms:
Minimum Order Quantity: 25 Unit/Units
Packaging Details: Thick Carton
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10000 Unit/Units per Month
Contact Now
Detailed Product Description
Material: Steel Approval: CE
Colors Available: Black, Yellow, Red Quick Connector At Batter Cables: Yes
Pulley Block Supplied: Yes
High Light:

Off Road Winch

,

utility winch electric

Vehicle 12V DC Winch, Foldable utility cranes

utility crane feature:
structually compact,

foldable
small size
light weight
minimal space required


Small Utility Vehicle Crane (12V DC Crane HP1000)

Specifications

model: HP1000

lifting capacity: 500kg  for single  line , 800kg for double line

reach max.(from center of rotation): 1490mm

rotation(continuous) with brake: 360 manual

lifting cable: 4.8mmx4.5m

line speed with No load: 3.7m/min

power requirement: 12V DC 90 amps

control: 1.8m remote

mounting base: 250x250x18mm

mounting bolt hole pattern:170x170mm

finish: powder coated

weight of crane: 115lbs

warranty: 1year
