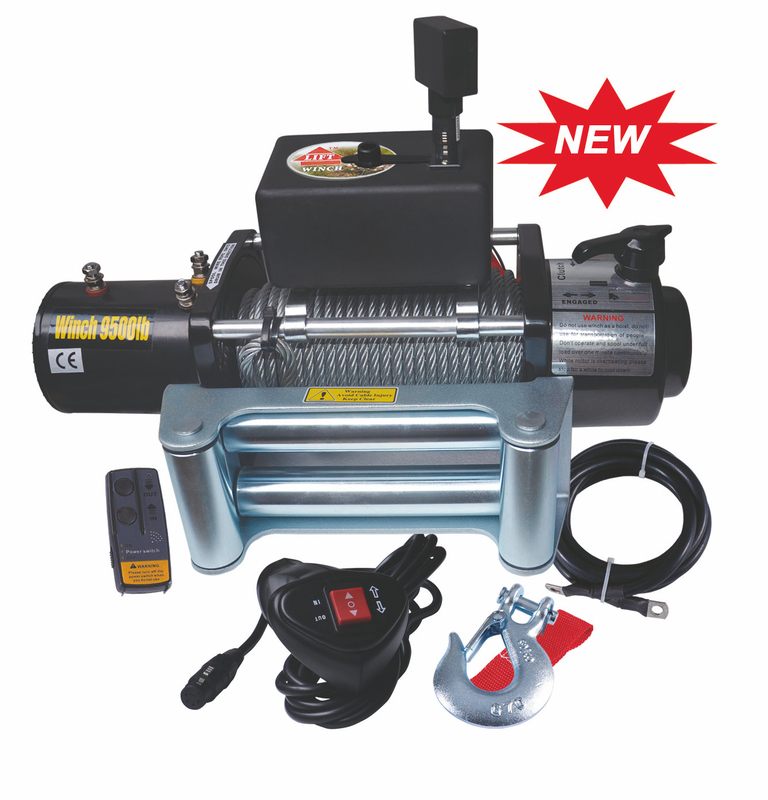

Wireless Remote Control Line 9500 LB 4x4 Recovery 12V DC Winch

large.img.alt
small.img.alt small.img.alt

Large Image :  Wireless Remote Control Line 9500 LB 4x4 Recovery 12V DC Winch Get Best Price

Product Details:
Place of Origin: China Mainland
Certification: CE, ISO
Model Number: SC9500T
Payment & Shipping Terms:
Minimum Order Quantity: 20 Unit/Units
Packaging Details: Thick Carton
Delivery Time: 20 day
Payment Terms: T/T
Supply Ability: 100 Piece/Pieces per Month
Detailed Product Description
High Light:

electric wire rope winch

,

portable 12v winch

Wireless Remote Control Line 9500 LB 4x4 Recovery 12V DC Winch

  1. sealed control box

  2. full engage and disengage clutch

  3. newly type wireless remote control


PACKAGE:



  1. Weight:(cable winch)N.W/GW:36kg/38kg
  2. weight(rope winch(:NW/GW:25kg/27kg
  3. box g size:57X19x34.5cm 1pc/ctn

Specifications:



  • Rated line pull:9500lb(4300kg) single line
  • Motor:5.5hp/4.0kw(12V)Series Wound
  • Control:Remote switch, 12ft(3.7m)lead
  • Gear Train:3 Stage Plantary
  • Gear Reduction ratio:195.4:1
  • Clutch:Key Cam
  • Braking Action:Two-way Automatic In-the-Drum
  • Drum Size:2.5"X8.8"(63.5X224mm)
  • Cable21/64"of 94ftdiameter(8.3mmX28m)
  • Rope:9.0mmX28m
  • Fairlead:4-wayRoller
  • Wireless remote control:included
  • Battery:Rocommended:650CCA minimum for winching
  • Battery leads:2 guage, 72"(183mm)
  • Finish:Black powder coat
  • Overall Dimensions:21.1"X6.3"X8.6"(537mmX160mmX218mm)
  • Mounting Bolt Pattern:254mmX114.3mm



9500lb Line Speed and Amp draw 12V



Line Pull lb No 2000 4000 6000 9500
  kg Load 907 1814 2722 4300
  ft/min 16.5 13.86 11.55 8.9 6.43
  m/min 5 4.2 3.5 2.7 1.95



9500lb Line Pull and Cable Capacity



Layers of cable    1 2 3 4
Rated Line
Pull per layer
lb 9500 6600 5300 4500
kg 4300 2993 2404 2041
cumulative cable
capacity
ft 18.5 41.2 68 92.4
  m 5.6 12.5 20.6 28
