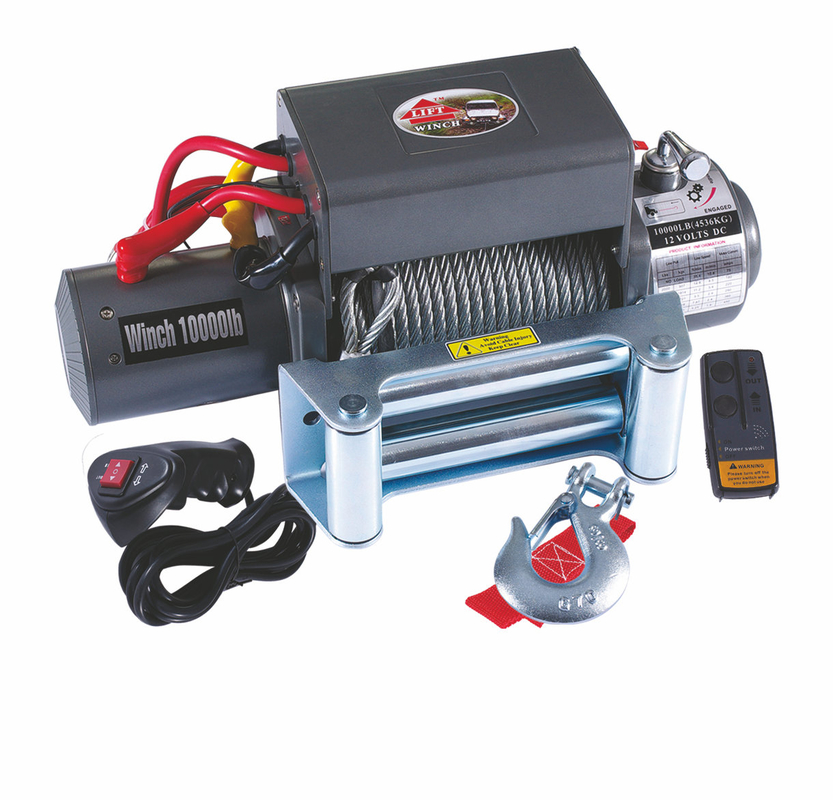

Waterproof control box 10000 LB 4x4 12V DC Winch / Winches

large.img.alt
small.img.alt small.img.alt

Large Image :  Waterproof control box 10000 LB 4x4 12V DC Winch / Winches Get Best Price

Product Details:
Place of Origin: China Mainland
Certification: CE, ISO
Model Number: SIC10000
Payment & Shipping Terms:
Minimum Order Quantity: 25 Unit/Units
Packaging Details: Thick Carton
Delivery Time: 15 day
Payment Terms: T/T
Supply Ability: 5000 Unit/Units per Month
Contact Now
Detailed Product Description
High Light:

electric wire rope winch

,

12v Electric Winch

Waterproof control box 10000 LB 4x4 12V DC Winch / Winches

  1. Fast line speed

  2. Waterproof control box, motor and gearbox, steel gears

  3. Switch remote and wireless remote control


Fast line speed winch,  cable winch, 10000lb (CE)


Specifications:

  • Rated line pull: 10000LBS(4536kgs) single line
  • Motor: 5.5hp/4.0kw (12V), 3.6hp/2.68kw (24V), Series Wound
  • Control: Remote switch, 12ft(3.7m)lead
  • Gear train: 3 Stage Planetary
  • Gear reduction ratio: 148.2:1
  • Clutch: Sliding Ring Gear
  • Braking Action: Automatic In-The-Drum
  • Drum Size: Φ64mmxL223.5mm
  • Cable: Φ8.3mm x 28m
  • Fairlead: 4-Way Roller Fairlead
  • Remote Control: Included
  • Battery: Recommended:650CCA minimum for winching
  • Battery Leads: 2 gauge, 72"(183mm)
  • Finish: Dark gray powder coat
  • Overall Dimension: 21.1"x6.3"x8.6 (537mmx160mmx218mm)
  • Mounting Bolt Pattern: 254mmx114.3mm
  • Weight: N.W. 36kgs G.W. 38Kgs
  • Packing size: 57x19x34.5cm  1PC/CTN
