1760lbs /800kg 3520lbs/1600kg, 7040lbs/3200kg Hand Operated Hoist Utility Trailer Winch

I'm Online Chat Now
Certification
China NINGBO LIFT WINCH MANUFACTURE CO.,LTD certification
China NINGBO LIFT WINCH MANUFACTURE CO.,LTD certification
The most reliable winch Supplier and Partner. Deep impressed by your Superior technique and Perfect after-sales service during our 7 years cooperation

—— Paul from Australia

i found this company very cooperative with my special requests for my order, and keep their word on delivery time,products quality reliable.

—— Donny from Indoneesia

we've been buying winches from them since 2009, cooperation has been very smooth, enjoy working with them.

—— T*i*a* from USA

1760lbs /800kg 3520lbs/1600kg, 7040lbs/3200kg Hand Operated Hoist Utility Trailer Winch

large.img.alt
small.img.alt

Large Image :  1760lbs /800kg 3520lbs/1600kg, 7040lbs/3200kg Hand Operated Hoist Utility Trailer Winch Get Best Price

Product Details:
Place of Origin: China
Brand Name: Huge Lift
Certification: ISO9001:2008,CE
Model Number: 1760lbs,3520lbs,7040lbs
Payment & Shipping Terms:
Minimum Order Quantity: 20 Unit/Units
Packaging Details: EXPORT STANDARD
Delivery Time: 25 days
Payment Terms: t/t, L/C, Western Union,paypal
Supply Ability: 9000pcs/month
Detailed Product Description



1760lbs /800kg 3520lbs/1600kg, 7040lbs/3200kg Hand Operated Hoist Utility Trailer Winch

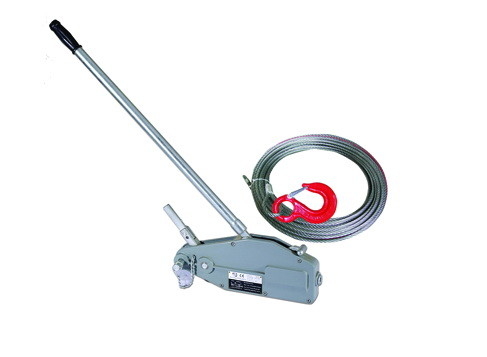

 This hand operated hoist  can be used by four-wheelers as an alternative to electric winches. It's made of solid iron and the 7040lbs/3200kg model comes with 16mm in diameter of steel cable. The portable puller has a max travelling load of 4000kg rating and can be positioned anywhere needed to extract the vehicle. It can even upright a rolled vehicle from the side.
1760lbs /800kg 3520lbs/1600kg, 7040lbs/3200kg Hand Operated Hoist Utility Trailer Winch 0




Hand Operated Hoist Trailer Winch Parts

three models for your option:

  1. 1760lbs /800kg
  2. 3520lbs/1600kg,
  3. 7040lbs/3200kg



Specifications of 7040lbs/3200kg hand operated hoist :

  • Rated Capacity (kg): Pull 3200KG - Lift 1600KG
  • Rated Forward hand power (N): 438
  • Cable travel per cycle (mm): 28 minimum
  • Rope Diameter (mm): 16
  • Wire rope safety factor: 5
  • Static load safety factor: 4
  • Max travelling load (kg): 4000
  • Dimensions (mm): 660 x 325 x 116

  •

Net Weights:

  • Winch: 23kg
  • Rope: 23kg
  • Handle: 2.5kg
