Product Details:
Payment & Shipping Terms:
|
High Light: | electric winches for trucks,industrial electric winch |
---|

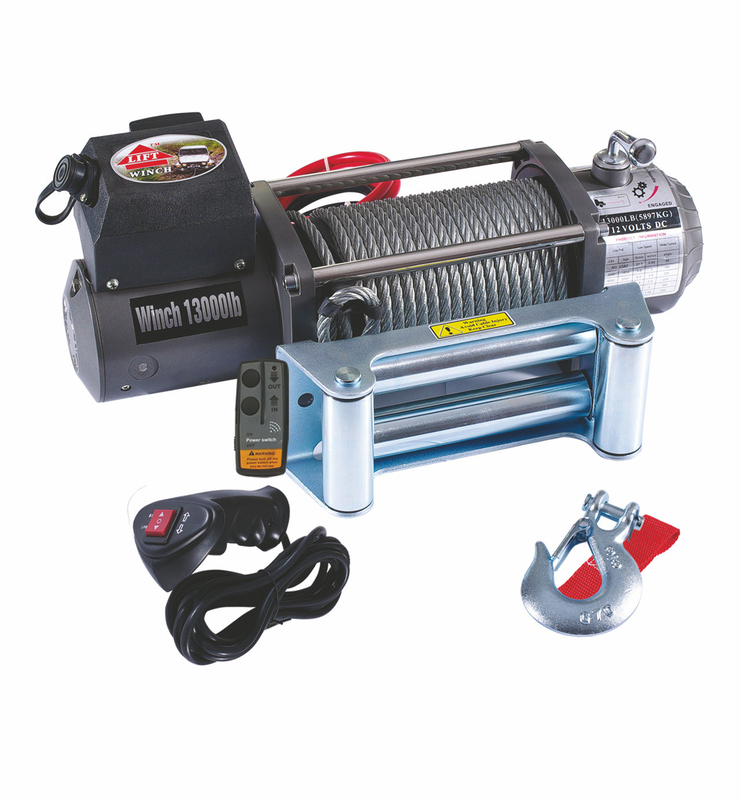

13000 lb 12v, 24v waterproofed motor Heavy Duty, Truck Electric Winch
Feaures :
Specification:
Line Pull | lb | 0 | 2000 | 4000 | 6000 | 8000 | 10000 | 13000 |
kg | 0 | 907 | 1814 | 2721 | 3628 | 4536 | 5897 | |
Line Speed | ft/min | 22.5 | 12.4 | 9.8 | 8.5 | 7.5 | 6.56 | 4.8 |
m/min | 6.85 | 3.8 | 3.0 | 2.6 | 2.3 | 2 | 1.48 |
Layers of cable | 1 | 2 | 3 | 4 | |
Rated Line Pull per layer |
lb | 13000 | 10010 | 8840 | 4710 |
kg | 5897 | 4541 | 4010 | 3361 | |
cumulative cable capacity |
ft | 15 | 34.6 | 58.6 | 85.3 |
m | 4.58 | 10.54 | 17.87 | 26 |
