20000 lb Heavy Duty DC 12V/ 24V Electric Winch Rope winches with slinging ring gears

20000 lb Heavy Duty DC 12V/ 24V Electric Winch Rope winches with slinging ring gears

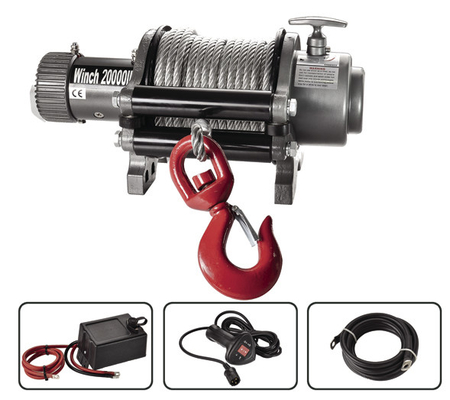

1. Truck Electric Winch 20000lb, the biggest DC winch, CE approved.

   4-way roller fairlead designed to connected with the winch.

2. The biggest DC electric winch
3. Truck Electric Winch 20000lb
4. Reliable
5. 4-way roller fairlead integrated on the winch

1. "P" means permanent magnet motor,
2. "S" means series wound motor, "I" means integrated solenoid box in one piece design,
3. "E" means low-profile control pack on the motor,
4. "C" means wireless remote control,
5. "N" means overload protection function,
6. "W" means synthetic rope.
7. CE approval for all winches
8. OEM available,  and are certificated
9. ISO 9001:2000 standard
10. applied several patents for our advanced winch technologies.

1. Specifications:
2. • Single line rated pull: 20, 000lbs(9072kg)
   • Motor: 7.3hp/5.5kw(12v);6.38hp/4.8kw(24v)
   • Control: remote switch, 12ft(3.7m) lead
   • Gear reduction ratio: 375:1
   • Clutch: slider
   • Braking action: two-way, automatic in-the-drum
   • Drum size: Φ99mmx201.5mm

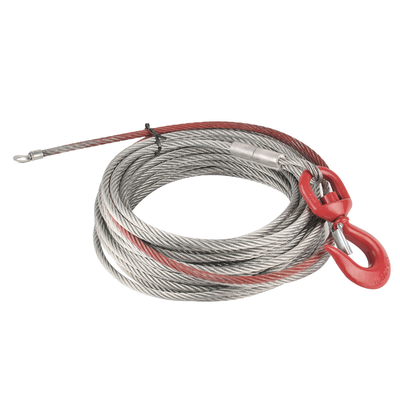

   • Cable: Φ13.5mmx30m
   • Remote control: wired remote control
   • Battery: recommended 650CCA minimum for winching
   • Battery leads: 2 gauge, 72(183mm)
   • Max current (no lead): 75A(12v); 65A (24v)
   • Max current: 465A(12V), 410A(24v)
   • Finish: dark grey powder coat
   • Weight: G.W.54kg(without cable); 85kg(with cable)
   • Cable weight: 33kg
   • Overall dimension: 565x310x280mm
   • Mounting plate: 254x114.3mm.254x194.3mm M10x30, Outside hexagon 8.8 grade 8pieces











   Mainly we export to Europe, America and Oceania, and these two years we exploit other markets in Africa, Southeast Asia and South America.



   Because of the heavy weight, we pack the winch and wire rope separately:
