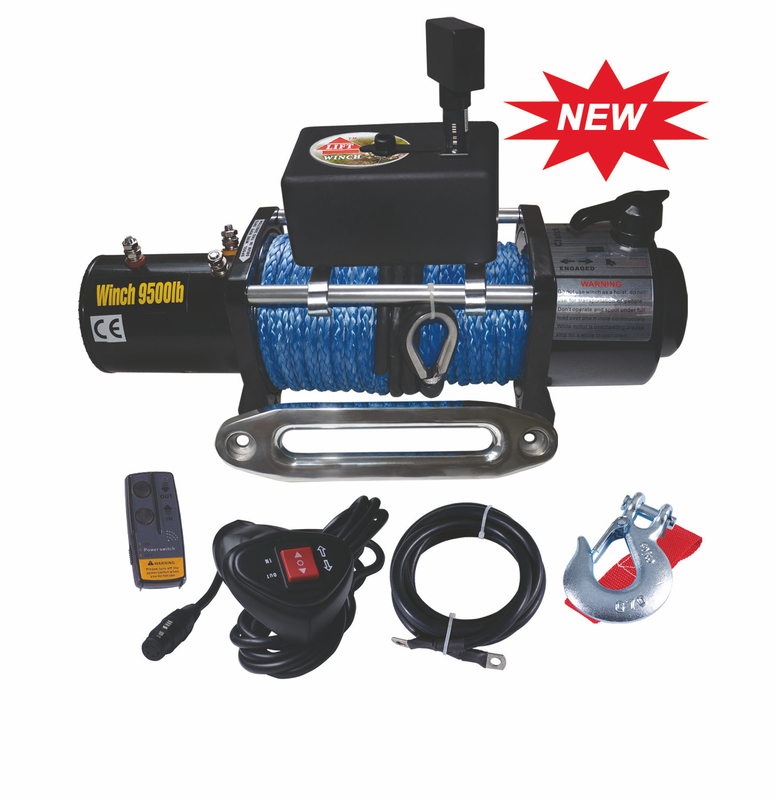

9500 LB OffRoad 4x4 Recovery 12V DC Winch / Winches (Aluminium Fairlead)

Large Image : 9500 LB OffRoad 4x4 Recovery 12V DC Winch / Winches (Aluminium Fairlead) Get Best Price

Product Details:

Place of Origin:	China Mainland
Certification:	CE, ISO
Model Number:	SC9500TW

Payment & Shipping Terms:

Minimum Order Quantity:	25 Unit/Units
Packaging Details:	Thick Carton
Delivery Time:	20 day
Payment Terms:	T/T
Supply Ability:	5000 Unit/Units per Month

Contact Now

Detailed Product Description

High Light:

portable 12v winch

12v Electric Winch

9500 LB OffRoad 4x4 Recovery 12V DC Winch / Winches (Aluminium Fairlead)

9500LB 4x4 Recovery Winch
For Off Road, Truck, heavy Duty, etc
Remote switch / 12ft(3.7m)lead
Aluminium Fairlead

Specifictions:

Rated Line Pull	9500LB (4300kgs) single line
Motor	5.5hp/4.0kw(12V) Series Wound
Control	Remote switch, 12ft(3.7m)lead
Gear train	3 Stage Planetary
Gear train ratio	195.4:1
Clutch	Key Cam
Braking Action	Two-way, Automatic In-The-Drum
Drum Size	Φ2.5"8.8"(Φ63.5mm224mm)
Rope	Φ8.5m*28m
Fairlead	Aluminium Fairlead
Wireless Remote Control	included
Battery	Recommended:650CCA minimum for winching
Battery Leads	2 gauge, 72"(183mm)
Finish	Black powder coat
Overall Dimensions	21.1"×6.3"×8.6"(537mm×160mm×218mm)
Mounting Bolt Pattern	254mm×114.3mm
Weight	N.W.81lb(27kg) G.W.84lb(28kg)
Packing Size	57×19×34.5cm 1PC/CTN

9500LB LINE SPEED AND AMP DRAW (FIRST LAYER) 12V

Line Pull	lbs	No LOAD	2000	4000	6000	9500
Line Pull	kg	No LOAD	907	1814	2721	4300
Line Speed	ft/min	16.5	13.86	11.55	8.9	6.43
Line Speed	m/min	5	4.2	3.5	2.7	1.95
Motor	Amps	73	120	165	260	410

9500LB LINE PULL AND CABLE CAPACITY

Layers of cable		1	2	3	4
Rated line pull per layer	lbs	9500	6600	5300	4500
Rated line pull per layer	kg	4300	2993	2404	2041
Cumulative cable capacity	ft	18.5	41.2	68	92.4
Cumulative cable capacity	m	5.6	12.5	20.6	28
