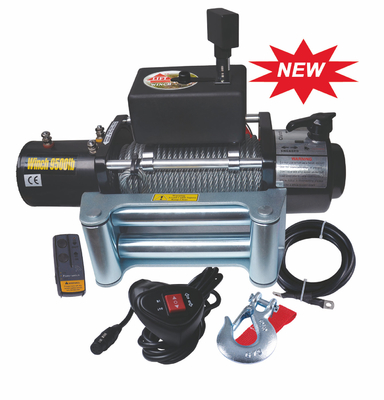

Wireless Remote Control 9500 LB Car Trailer Winch / Winches

Large Image : Wireless Remote Control 9500 LB Car Trailer Winch / Winches Get Best Price

Product Details:

Place of Origin:	China Mainland
Brand Name:	Huge Lift
Certification:	CE, ISO9001:2008
Model Number:	SC9500T

Payment & Shipping Terms:

Minimum Order Quantity:	30 Unit/lue[value[1][Minimum Order Quantity][id]=1793814
Packaging Details:	Thick Carton
Delivery Time:	20 days
Payment Terms:	T/T, L/C, Western Union,paypal
Supply Ability:	9000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Customer Logo:

Okay

Pulling Capacity:

9500lbs

Quality:

High

High Light:

electric car trailer winch

electric winch for car trailer

Wireless Remote Control 9500 LB Car Trailer Winch / Winches

sealed control box

full engage and disengage clutch

new type wireless remote control
Heavy duty 500A solenoid

PACKAGE:

Weight:(cable winch)N.W/GW:36kg/38kg
weight(rope winch(:NW/GW:25kg/27kg
box g size:57X19x34.5cm 1pc/ctn

Specifications:

Rated line pull:9500lb(4300kg) single line
Motor:5.5hp/4.0kw(12V)Series Wound
Control:Remote switch, 12ft(3.7m)lead
Gear Train:3 Stage Plantary
Gear Reduction ratio:195.4:1
Clutch:Key Cam
Braking Action:Two-way Automatic In-the-Drum
Drum Size:2.5"X8.8"(63.5X224mm)
Cable21/64"of 94ftdiameter(8.3mmX28m)
Rope:9.0mmX28m
Fairlead:4-wayRoller
Wireless remote control:included
Battery:Rocommended:650CCA minimum for winching
Battery leads:2 guage, 72"(183mm)
Finish:Black powder coat
Overall Dimensions:21.1"X6.3"X8.6"(537mmX160mmX218mm)
Mounting Bolt Pattern:254mmX114.3mm

9500lb Line Speed and Amp draw 12V

Line Pull	lb	No	2000	4000	6000	9500
	kg	Load	907	1814	2722	4300
	ft/min	16.5	13.86	11.55	8.9	6.43
	m/min	5	4.2	3.5	2.7	1.95

9500lb Line Pull and Cable Capacity

Layers of cable		1	2	3	4
Rated Line Pull per layer	lb	9500	6600	5300	4500
Rated Line Pull per layer	kg	4300	2993	2404	2041
cumulative cable capacity	ft	18.5	41.2	68	92.4
	m	5.6	12.5	20.6	28
