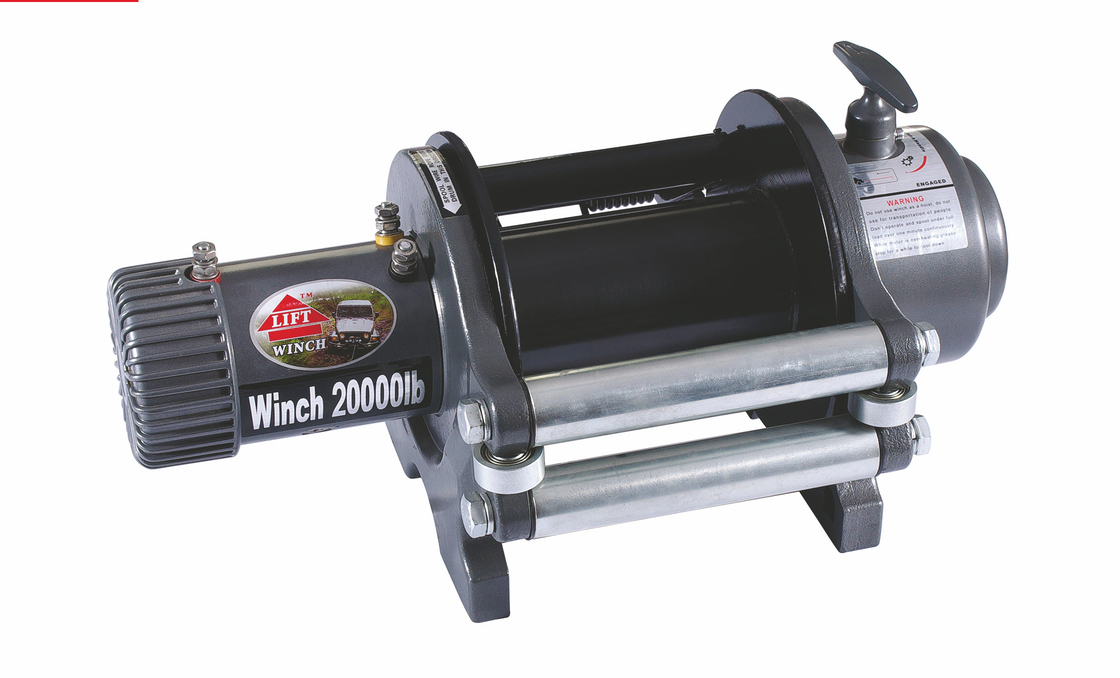

Wireless remote control 20000LB 12v, 24v Heavy Duty Electric Winches

Large Image : Wireless remote control 20000LB 12v, 24v Heavy Duty Electric Winches Get Best Price

Product Details:

Place of Origin:	China Mainland
Certification:	CE, ISO
Model Number:	SC20000

Payment & Shipping Terms:

Minimum Order Quantity:	25 Unit/Units
Packaging Details:	Thick Carton
Delivery Time:	15 day
Payment Terms:	T/T
Supply Ability:	5000 Unit/Units per Month

Contact Now

Detailed Product Description

High Light:

electric trailer winches

electric motor winch

Wireless remote control 20000LB 12v, 24v Heavy Duty Electric Winches

1.20000lb truck winch
2. waterproof motor and gearbox
3. wired and wireless remote control

Specifications:

%gcolor09

Single line rated pull	20000LB (9072kg)
Motor	7.3hp/5.5kw(12V), 6.38hp/4.8kw(24V), Series Wound
Control	Remote switch, 12ft(3.7m)lead
Gear train ratio	375:1
Clutch	Slid ar
Braking Action	Two-way, Automatic in-the drum
Drum Size	Φ99mm×201.5mm

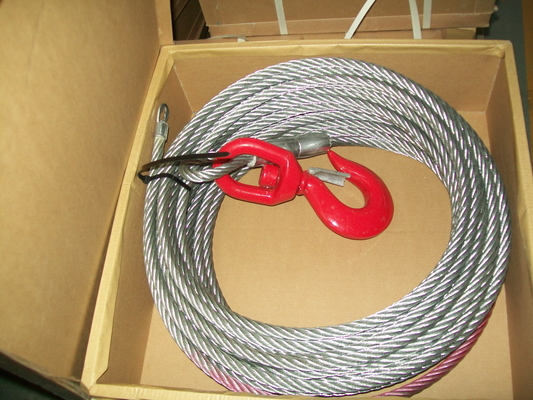

Cable	Φ13.5mm×30m
Remote Control	Wired remote control
Battery	Recommended:650CCA minimum for winching
Battery Leads	2 gauge, 72"(183mm)
MAX Current (No load)	≥75A (12V) ≥65A(24V)
MAX Current (load)	≥465A(12V) ≥410A(24V)
Finish	Dark gray powder coat
Weight	G.W:54kg (without cable), 85kg(with cable) N.W:52Kkg
Cable Weighth	33kg
Overall Dimensions	565×310×280MM
Mounting hole	254×114.3mm, 254×194.3mm M10×30 Outside Hexagon 8.8 grade 8 pieces

20000LB LINE SPEED AND AMP DRAW (FIRST LAYER) 12V

Line Pull	lbs	NO	8000D iv>	10000	13000	16000	20000
Line Pull	kg	load	3629	4536	5897	7258	9072
Line Speed	ft/min	19.8	11.6	9.7	8.58	6.6	3.96
Line Speed	m/min	6	3.5 2.95	2.6	2	1.2
Motor	Amps	75	190	260	310	380	465

20000LB LINE SPEED AND AMP DRAW (FIRST LAYER) 24V

Line Pull	lbs	NO	8000	10000	13000	16000	20000
Line Pull	kg	load	3629	4536	5897	7258	9072
Line Speed	ft/min	19.8	11.6	9.7	8.58	6.6	3.96
Line Speed	m/min	6	3.5	2.95	2.6	2	1.2
Motor	Amps	65	170	230	290	360	410

20000LB LINE PULL AND CABLE CAPACITY

Layers of cable		1	2	3	4	5
Rated line pull per layer	lbs	20000	16000	13000	10000	8000
Rated line pull per layer	kg	9072	7258	5897	4536	3629
Cumulative cable capacity	ft	16.5	37.3	61	89	99
Cumulative cable capacity	m	5	11.3	18.5	27	30
