Pulling Capacity: | 8500lbs | Approval: | CE |
---|---|---|---|
Product Liability Insurance: | Covered Worldwide | OEM Service: | Yes |
Warranty: | 12months | Quality: | A+ |
Mounting: | Universal | ||
High Light: | electric car trailer winch,car hauler trailer winch |

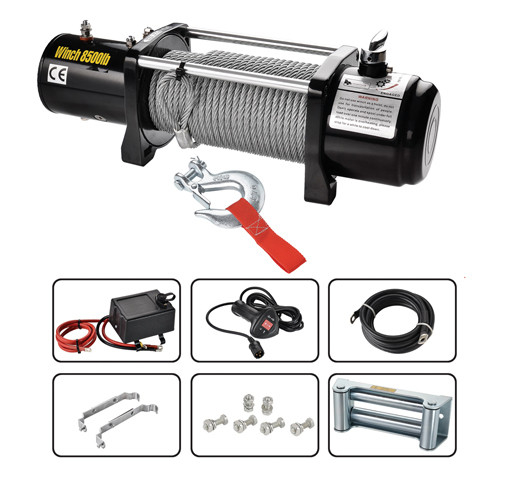

8500 LB self recovery Electrical Car Trailer Winch / Winches
1.self recovery winch 8500lb,
2.water-proof motor&gearbox&sealed solenoid
3.switch remote &wireless remote
Rated Line Pull | 8500LBS (3856kgs) single line |
Motor | 5.5hp/4.0kw, Series Wound |
Control | Remote switch, 12ft(3.7m)lead |
Gear train | 3 Stage Planetary |
Gear train ratio | 195.8:1 |
Clutch | Sliding Ring Gear |
Braking Action | Automatic In-The-Drum |
Drum Size | Φ2.5"*8.8"(Φ63.5mm*224mm) |
Cable | 5/16"of 94ft diameter( Φ8.1mm*28m ) |
Fairlead | 4-Way Roller Fairlead |
Remote Control | Included |
Battery | Recommended:650CCA minimum for winching |
Battery Leads | 2 gauge, 72"(183mm) |
Finish | Black powder coat |
Overall Dimensions | 21.1"×6.3"×8.6"(537mm×160mm×218mm) |
Mounting Bolt Pattern | 254mm×114.3mm |
Weight | N.W.81LB(37kg) G.W.84LB (38kg) |
Packing Size | 57×19×34.5cm 1PC/CTN |
Line Pull |
lbs
|
0 |
2000
|
4000
|
6000
|
8000 | 8500 |
kg
|
0 |
907
|
1814
|
2721
|
3628 | 3856 | |
Line Speed |
ft/min
|
28.2
|
15.4
|
11.5
|
9.2
|
7.7 | 7.2 |
m/min
|
8.6
|
4.7
|
3.5
|
2.8
|
2.35 | 2.2 | |
Motor |
Amps
|
70
|
160
|
240
|
310
|
390 | 415 |
Layers of cable | 1 | 2 | 3 | 4 | |
Rated line pull per layer | lbs | 8500 | 6900 | 5845 | 5100 |
kg | 3856 | 3130 | 2650 | 2310 | |
Cumulative cable capacity | ft | 16 | 42 | 72 | 94 |
m | 5 | 12 | 21 | 28 |
