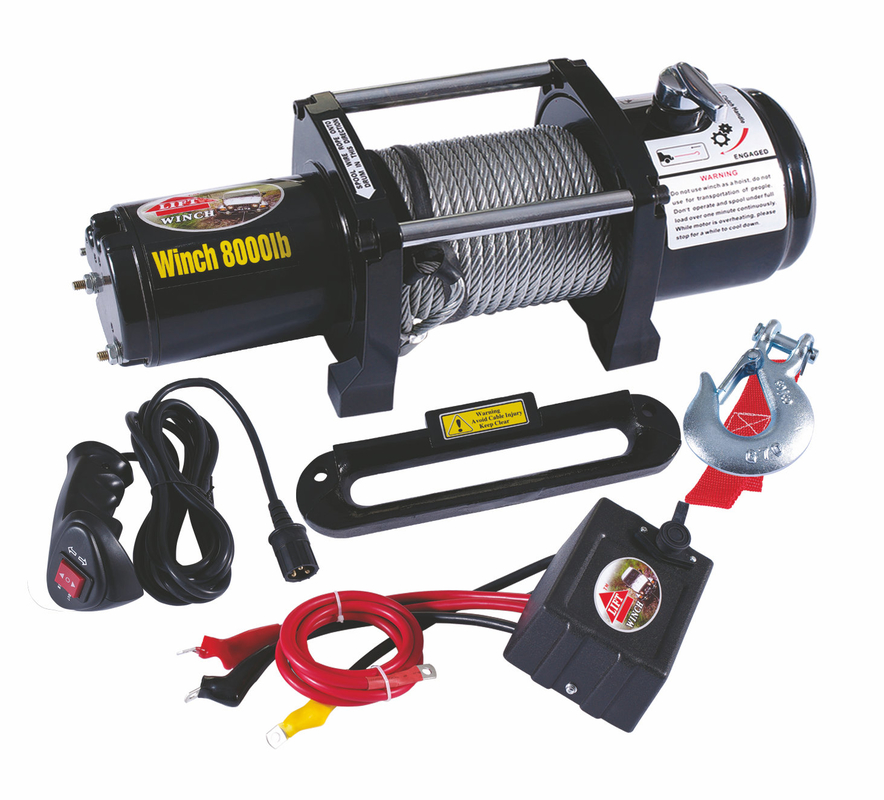

8000 LB 12V DC Electric Offroad 4x4 Recovery , Car Trailer Winch

large.img.alt
small.img.alt small.img.alt

Large Image :  8000 LB 12V DC Electric Offroad 4x4 Recovery , Car Trailer Winch Get Best Price

Product Details:
Place of Origin: China Mainland
Certification: CE, ISO9001:2008
Model Number: P8000
Payment & Shipping Terms:
Minimum Order Quantity: 25 Unit/Units
Packaging Details: Thick Carton
Delivery Time: 20 days
Payment Terms: T/T
Supply Ability: 9000 Unit/Units per Month
Detailed Product Description
High Light:

electric winch for car trailer

,

car hauler trailer winch

8000 LB 12V DC Electric Offroad 4x4 Recovery , Car Trailer Winch

  1. 8000lb 4x4 Recovery / Car Winch
  2. heavy duty electric winch
  3. CE winch
  4. fairlead included.

 8000lb CE winch


 Specifications:

  • Rated line pull: 8000LBS (3629kgs) single line
  • Motor: 4.13kw/3.0hp (12V), permanent magnet
  • Control: Remote switch, 12ft (3.7m)lead
  • Gear train: 3 Stage Planetary
  • Gear reduction ratio: 197:1
  • Clutch:  Sliding Ring Gear
  • Braking Action: Automatic In-The-Drum
  • Drum Size: Φ2.6"x8.8 (Φ64mmx224mm)
  • Cable: 94ft of 5/16" diameter (28m of 8.1mm diameter)
  • Remote Control: Included
  • Battery: Recommended: 650CCA minimum for winching
  • Battery Leads:  2 gauge, 72 (183mm)
  • Finish: Black powder coat
  • Overall Dimension: 21.1"x6.3"x8.6 (537mmx160mmx218mm)
  • Mounting Bolt Pattern: 254mmx114.3mm
  • Weight: N.W. 35kgs  G.W. 68Kgs
  • Packing size: 57x19x34.5cm  1PC/CTN
